cybrics CTF 2019 writeup

前几天打了一下cybrics CTF，主要都是杂项，学到了不少东西，因此记录一下。

Oldman Reverse

1 2	desc:I've found this file in my grandfather garage. Help me understand what it does file:oldman.asm

oldman.asm内容如下：

.MCALL  .TTYOUT,.EXIT
START:
    mov   #MSG r1
    mov #0d r2
    mov #32d r3
loop:
    mov   #MSG r1
    add r2 r1
    movb    (r1) r0
    .TTYOUT
    sub #1d r3
    cmp #0 r3
    beq     DONE
    add #33d r2
    swab r2      ;将目标位置的字数据的高位字节与低位字节互换
    clrb r2      ;将目标位置的低字节数据清零
    swab r2      ;将目标位置的字数据的高位字节与低位字节互换
    br      loop
DONE:
    .EXIT

MSG:
    .ascii "cp33AI9~p78f8h1UcspOtKMQbxSKdq~^0yANxbnN)d}k&6eUNr66UK7Hsk_uFSb5#9b&PjV5_8phe7C#CLc#<QSr0sb6{%NC8G|ra!YJyaG_~RfV3sw_&SW~}((_1>rh0dMzi><i6)wPgxiCzJJVd8CsGkT^p>_KXGxv1cIs1q(QwpnONOU9PtP35JJ5<hlsThB{uCs4knEJxGgzpI&u)1d{4<098KpXrLko{Tn{gY<|EjH_ez{z)j)_3t(|13Y}"
.end START

看懂汇编代码就可以了，字符串长度刚好为256，注释的三行代码相当于模256，脚本如下：

s = "cp33AI9~p78f8h1UcspOtKMQbxSKdq~^0yANxbnN)d}k&6eUNr66UK7Hsk_uFSb5#9b&PjV5_8phe7C#CLc#<QSr0sb6{%NC8G|ra!YJyaG_~RfV3sw_&SW~}((_1>rh0dMzi><i6)wPgxiCzJJVd8CsGkT^p>_KXGxv1cIs1q(QwpnONOU9PtP35JJ5<hlsThB{uCs4knEJxGgzpI&u)1d{4<098KpXrLko{Tn{gY<|EjH_ez{z)j)_3t(|13Y}"
print len(s)
a = 0
flag = ""
for i in range(32):
	flag += s[a]
	a = (a + 33) % 256
print flag

flag：cybrics{pdp_gpg_crc_dtd_bkb_php}

Honey, Help!

1 2	desc:I was working in my Kali MATE, pressed something, AND EVERYTHING DISAPPEARED! file:honey_hlep.txt

echo $'\e(0)'命令将终端的assic转化成一种加密的字符z，输入abcdefghijklmnopqrstuvwxy{}

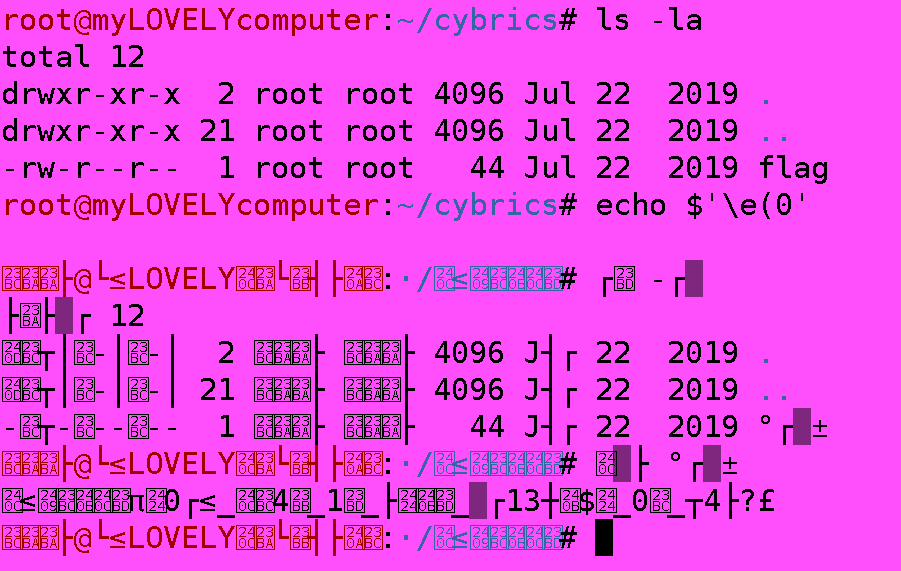

看题目给的图片，容易发现倒数第二行就是加密的flag。当时我是一个个手工替换，后来参考了一下ctftime上的脚本（注意：只能python3）

#! /usr/bin/python3
#coding:utf-8

ciphertext = '▒␉␌␍␊°±
␋┘┐┌└┼⎺⎻─⎼⎽├┤┴┬│≤≥π£'
plaintext = 'abcdefghijklmnopqrstuvwxyz{}'
mapping = {i:j for i, j in zip(ciphertext, plaintext)}

print(mapping)
with open('honey_help.txt') as f:
    print(''.join([mapping.get(i, i) for i in f.read()]))

flag：cybrics{h0ly_cr4p_1s_this_al13ni$h_0r_w4t?}

Zakukozh

1 2	desc:This image containing flag is encrypted with affine cipher. Scrape it file:zakukozh.bin

根据描述，zakukozh.bin是仿射密码加密的密文，仿射密码加密解密规则如下：

加密：c = ((a * x) + b) mod m
解密：x = (a^-1 * (x - b)) mod m
x：明文
c：密文
a，b：密钥
m：密文空间
a^-1：a关于m的乘法逆元
其中：a与m互素

这里数据以字节为单位，因此m=256，a为3到256的奇数，b为0到255。密文空间为127*256，可以爆破。

def affine_d(a,b,c):
	return chr((a*(ord(c) - b))%256)
with open("zakukozh.bin",'rb') as f:
	data = f.read()

for i in range(3,256,2):
	for j in range(256):
		file = ''.join([affine_d(i,j,c) for c in data])
		with open("output/file_{}_{}".format(i,j),'wb') as f:
			f.write(file)

然后

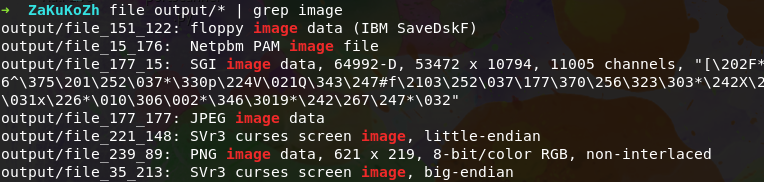

查看file_239_89，发现flag

除此之外，还有一种简易的方法

查看加密文件头60 09 EB 82 1C EF DF EF

JPEG: ff d8 ff e0 xx xx 4a 46 49 46
GIF: 47 49 46 38 39 61
PNG: 89 50 4e 47 0d 0a 1a 0a

因为仿射密码是简单的代换密码，因此猜测是png加密，于是可以直接根据文件头爆破a，b

png      = [0x89, 0x50, 0x4e, 0x47, 0x0d, 0x0a, 0x1a, 0x0a]
zakukozh = [0x60, 0x09, 0xeb, 0x82, 0x1c, 0xef, 0xdf, 0xef]
x = []
def brute_a_b():
	for a in range(3,256,2):
		for b in range(256):
			x = zakukozh[:]
			for i in range(8):
				x[i] = (a*(zakukozh[i] - b))%256
			if x==png:
				return a,b

a,b = brute_a_b()
print a,b

with open("zakukozh.bin",'rb') as f:
	data = f.read()

png = ""
for i in data:
	png += chr((a * (ord(i) - b))%256)
with open("flag.png",'wb') as f:
	f.write(png)

flag：cybrics{W311_C0M3_2_CY13R1C5}

ProCTF

desc:We Provide you a Login for your scientific researches. Don't try to find the flag.

ssh pro@95.179.148.72
Password: iamthepr0

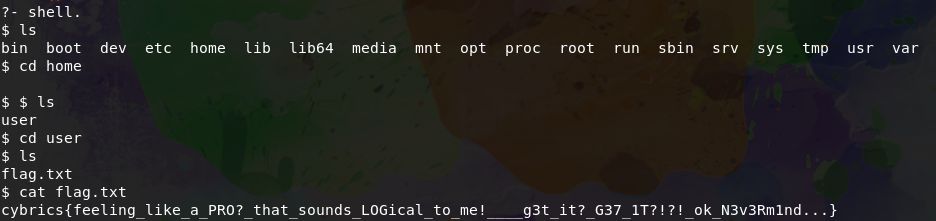

这里考察prolog语言如何调用shell，参考链接

http://www.ruanyifeng.com/blog/2019/01/prolog.html（Prolog 语言入门教程）

https://www.swi-prolog.org/pldoc/doc_for?object=shell%3Ashell/0（Prolog调用shell）

flag:cybrics{feeling_like_a_PRO?_that_sounds_LOGical_to_me!____g3t_it?_G37_1T?!?!_ok_N3v3Rm1nd…}

QShell

QShell is running on
nc spbctf.ppctf.net 37338

Grab the flag

连上之后，发现接收到一张二维码，解码结果为sh-5.0$。猜测应该是把交互信息通过二维码传输。于是只需两个转换脚本即可解决。首先，将接收的数据转为二维码图片

data = p.recvuntil("\n.").rstrip('.').rstrip()
p.recvline()

data += '#'
qr = [[]]
i = 0

while i < len(data):
	if data[i] == '\xe2':   #白色部分'\xe2\x96\x88'
		qr[-1].append(255)  #RGB（255,255,255）为白色
		i += 3
	elif data[i] == '\x20': #黑色部分为空格
		qr[-1].append(0)    #RGB（0,0,0）为黑色
		i += 1
	elif data[i] == '\x0a': #换行
		qr.append([])
		i += 1
	else:
		break
image = Image.new('RGB',(len(qr),len(qr[0])),(255,255,255))

for x in range(len(qr)):
	for y in range(len(qr[0])):
		rgb = qr[y][x]
		image.putpixel((x,y),(rgb,rgb,rgb))

size = len(qr)
image = image.resize((size * 3, size * 3))  #3层通道
image.save("qr.png")

result = decode(image)
print  result[0][0]

将二维码转化为传送数据

img = qrcode.make('cat flag.txt')   #生成二维码图片
data = b''
for y in range(img.size[1]):
    for x in range(img.size[0]):
        r = img.getpixel((x, y))
        if r == 255:
            data += b'\xe2\x96\x88'
        else:
            data += b' '
    data += b'\n'
data += b'\n.'

完整脚本

from pwn import *
from PIL import Image
from pyzbar.pyzbar import decode
import qrcode


#context.log_level = 'debug'
p = remote("spbctf.ppctf.net", "37338")

def recv():
	data = p.recvuntil("\n.").rstrip('.').rstrip()
	p.recvline()

	data += '#'
	qr = [[]]
	i = 0

	while i < len(data):
		if data[i] == '\xe2':
			qr[-1].append(255)
			i += 3
		elif data[i] == '\x20':
			qr[-1].append(0)
			i += 1
		elif data[i] == '\x0a':
			qr.append([])
			i += 1
		else:
			break

	image = Image.new('RGB',(len(qr),len(qr[0])),(255,255,255))

	for x in range(len(qr)):
		for y in range(len(qr[0])):
			rgb = qr[y][x]
			image.putpixel((x,y),(rgb,rgb,rgb))

	size = len(qr)
	image = image.resize((size * 3, size * 3))
	#image.save("flag.png")

	result = decode(image)
	print  result[0][0]

def send(cmd):
	img = qrcode.make(cmd)
	data = b''
	for y in range(img.size[1]):
		for x in range(img.size[0]):
			r = img.getpixel((x, y))
			if r == 255:
				data += b'\xe2\x96\x88'
			else:
				data += ' '
		data += '\n'
	data += b'\n.'
	p.sendline(data)

recv()
while True:
	cmd = raw_input("sh-5.0$ ")
	send(cmd)
	recv()
p.interactive()

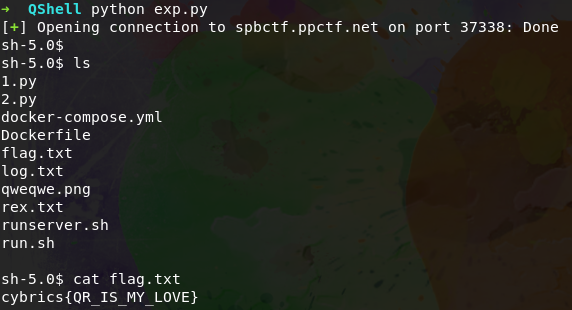

运行结果

Warmup

1
2
3

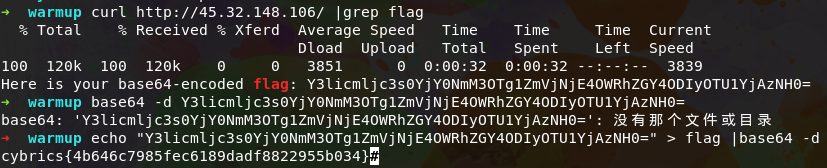

desc:E_TOO_EASY

Just get the flag

网页有跳转，查看源网页
